Grid Connected Residential Solar Power Systems / Home Solar System 1 Kw

Brand Name : OEM

Model Number : OEM

Certification : CE ROSH

Place of Origin : CHINA

MOQ : 1unit

Price : Negotiable

Supply Ability : 300 Set/Sets per week

Delivery Time : 20days

Packaging Details : carton

solar panel : 300W solar panel

Load Power (W) : 4500W

Inverter : Off grid Pure sine wave

Charging time : 8-10 housr to charge the battery fully

Battery : 12V/12AH SMF lead acid battery

Application : buliding

Contact Now

Grid connected home solar energy system 1kw Residential Solar Power Systems

Description:

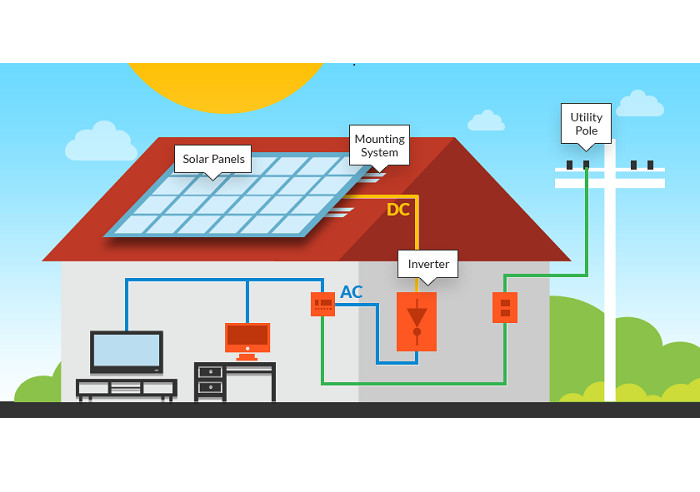

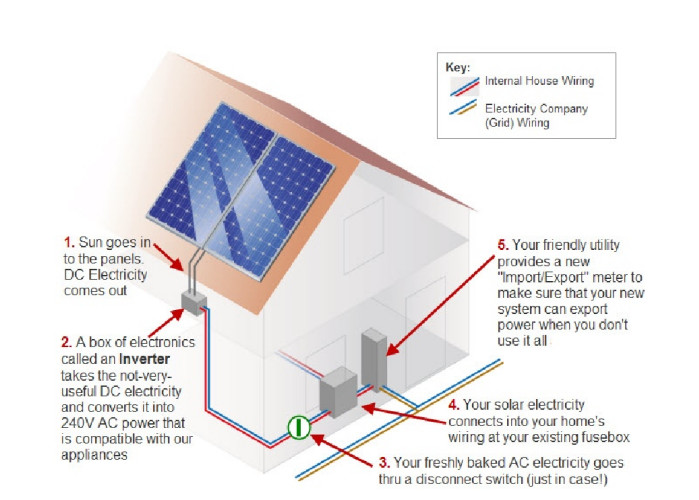

Solar Panels: Change sunlight into direct current(DC) electricity

Support Structure: Attaches the solar panels to roof or building

Inverter: Changes DC electricity from the solar panels into AC electricity

Meter: Tracks the AC electricity coming from and being sent back to the electric utility grid

1.1KW Grid Tied Solar System Specification

SOLAR PANEL
Solar panel power Pm	12*260WP
Power allowance	±3%
Optimized working voltage Vm	36.6V
Optimized working current Im	7.1A
Open circuit voltage Voc	45.1V
Short circuit current Isc	7.67A

GRID TIED INVERTER
Inverter Input (DC)
Max. DC power	3100W
Max. DC voltage	500V
Max. input current	8.8A
Number of MPP trackers/Strings per MPP tracker	1 1
MPPT voltage range (at rated power)	120～425V
Shutdown voltage/Start voltage	70/120V

Inverter Output (AC)	Inverter Output (AC)
AC nominal power	3000W
Max. AC power	1000W
Max. AC current	5.5A
Nominal AC voltage / range	230 / 180~270V
AC grid frequency / range	50 / 47~52Hz
Power factor (cosφ)	1
Total harmonic distortion (THDi)(at nominal power)	<3%
Inverter Efficiency	Inverter Efficiency
Max. efficiency	96.60%
Euro efficiency	95.50%
MPPT efficiency	99.90%
Inverter General data
Dimensions (W / H / D)	285385145mm
Weight [kg]	15Kg
Operating temperature range	-20～+60 (derating at 45 °C)
Ingress protection	IP65
Topology	transformerless
Internal consumption(night)	0
Cooling concept	Convection
Noise (typical)	<30 dB
LCD display	Backlight, 16*2 Character LCD
Communication port	RS232

SOLAR PANEL MOUNTING(Pitch roof )
Rail	2600mm*8pcs
Hook	24pcs
Middle clamp	20pcs
End clamp	8pcs
Connect of rail	4pcs
Grounding lug (Optional)	10pcs
Earthing clips (Optional)	10pcs

ELERTRIC BOX (Optional)	AC/DC Circuit Breakers,Lighting arrestors, Electric meter

WHY GO SOLAR?

CONTROL ENERGY COSTS

With solar you can secure predictable electricity costs for years to come.

SAVE MONEY

In most states, solar costs less than energy from the utility, so you can save on your bill.

HELP THE ENVIRONMENT

Solar creates 91% less CO2 pollution than natural gas and 96% less CO2 than coal.

ENERGY INDEPENDENCE

Clean solar energy provides us with an unlimited, reliable source of energy.

Stay energized even when the grid is down

When the grid is available, power produced by your solar system is used by the home and excess energy is

sent into the utility grid. In the event of a power outage the backup inverter will automatically turn on to

power critical appliances such as the fridge/freezer, lights, well pump, computer, phone and more. The

combination of solar energy and battery storage works seamlessly to provide power to essential appliances

during an outage, working similar to an off-grid system. A backup gas generator could be incorporated for an

extra degree of independence to protect against long-term power outages.
