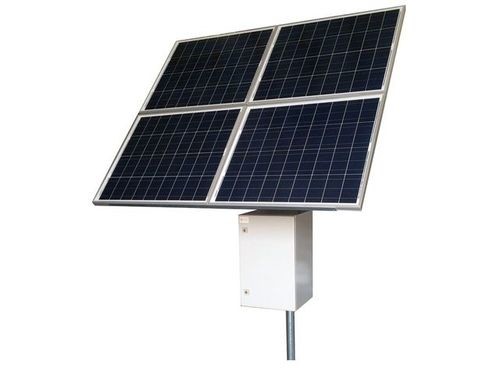

solar monitor system Residential Solar Power Systems modern home solar power planet 100w solar panel
Solar panel constituent part :
1. Stalinite ( Protect generate conductor from damage , such as solar cell )
2. EVA ( Fix aluminium alloy and generate conductor )
3. Solar cell ( Generation function )
4. Backboard( PET ) , Sealing , insulation and waterproof )
5. Aluminium alloy ( Seal and support function )
6. Juntion box ( Protect generation system and transfer current function )
7. Silica gel ( Sealing function )
Blank Grid-Tied PV System
Note: All numbers are retied, manufacturers’ specifications, or nominal unless otherwise specified.
Photovoltaics: Eighteen Kyocera KC200GT, 200W each at 26.3 Vmp, wired in two 9 module series strings
for 3,600W total at 236.7Vmp
Inverter: Aurora PVI-3600-US, 3,600W, 600VDC max. Input, 240VAC output.
KWH Meter: To utility grid
AC Disconnect
Fuses: Two, 60A
Lighting Arrestor
AC Service Entrance: To 120/240 VAC loads
Solar energy,
solar air heating,
solar cooking,
solar pumping,
solar power,
solar hot woter,
wind power,
solar pool heating,
others: heat energy,
winter solar inssues,
pure / true vs modified sine wave inverters,
how to make solar cells,
insulation,
how to find true south,
shading / obstables,
how to make a sun finder,
how to square a solar array frame,
mini solar tower.
| OLLIN-100M-120M |
| Monocrystalline Solar Module |
| | | | | | | | |
| Mechanical Data |
| Cell type | Mono156mm*114mm |
| No.of cells | 36 in series(4*9) |
| Dimensions | 1100*670*30mm |
| Weight | 7kg |
| | | | | | | | |
| Electrical Data |
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) |
| Power | 100WM | | 110WM | | 120WM |
| Open circuit voltage(Voc) | 21.5V | | 21.5v | | 21.6V |
| Max. power voltage(Vmp) | 17.46V | | 17.48V | | 17.5V |
| Short circuit current(Isc) | 5.98A | | 6.6A | | 7.2A |
| Max. power current(Imp) | 5.56A | | 6.1A | | 6.67A |
| A grade power Tolerance | ± 3% |
| Max.system voltage | 1000V |
| Operating temp. | —40℃~80℃ |
| Temperature coefficients of Pmax | -0.47% /℃ |
| Temperature coefficients of Voc | -0.38% /℃ |
| Temperature coefficients of Isc | +0.1% /℃ |
FAQ
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1. Guarantee time: one year, but solar panel 10 years
2. Spare parts:1% spare parts will be shipped with your order.
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1. CE, 2. According to your need , do the certification or report , if you have a big order.
